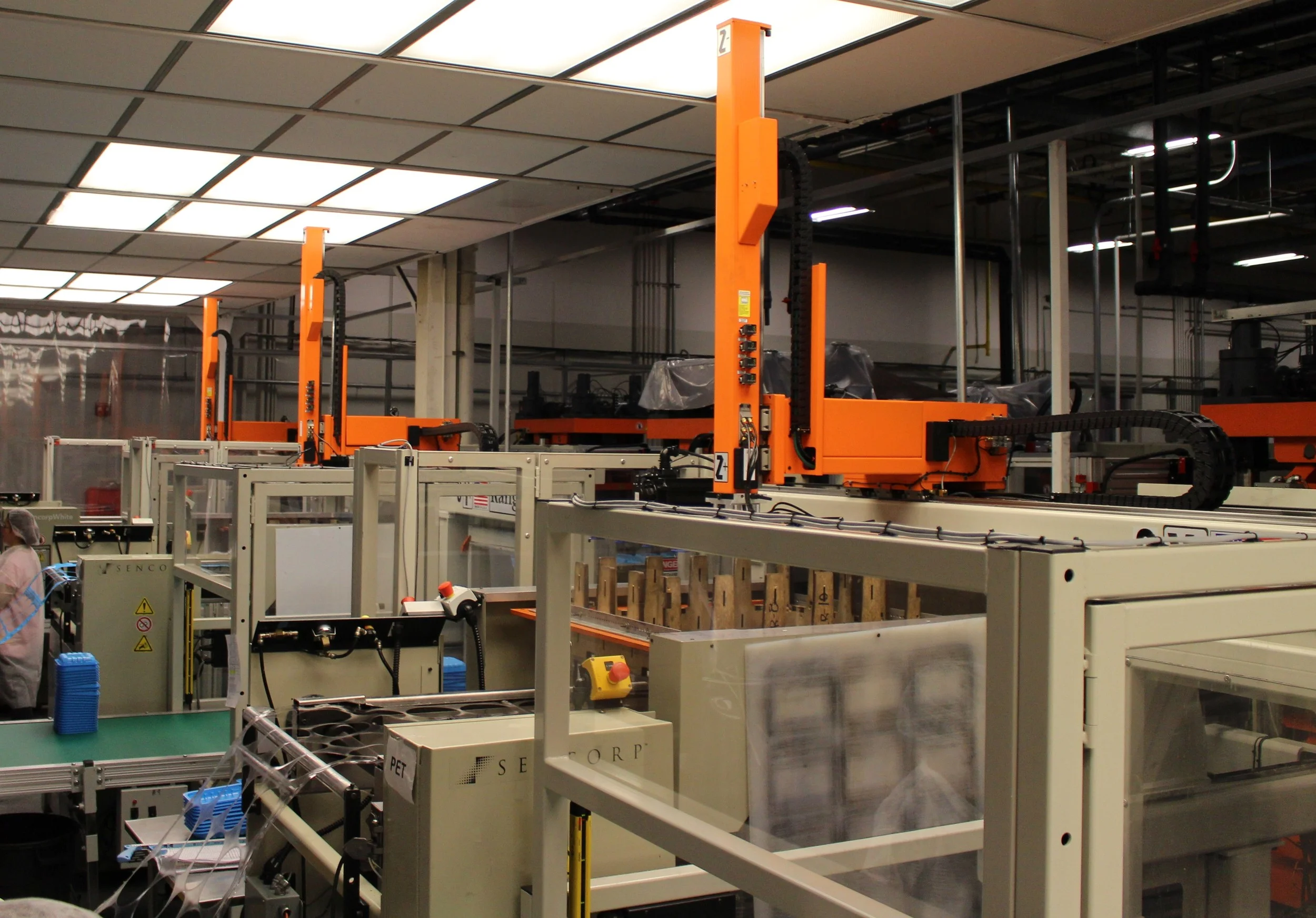

Application: Part removal from thermoforming machine upstacker and transfer to indexing conveyor.
Obstacles: Low overhead ceiling clearance and limited space between the existing machines.
Solution: Robot mounted directly to machine frame to minimize footprint. New safety guarding surround integrated with existing machine guarding to minimize cost. Low profile vertical arm and a index travel axis beam that is parallel with the film chain rail to minimize required robot travel.
